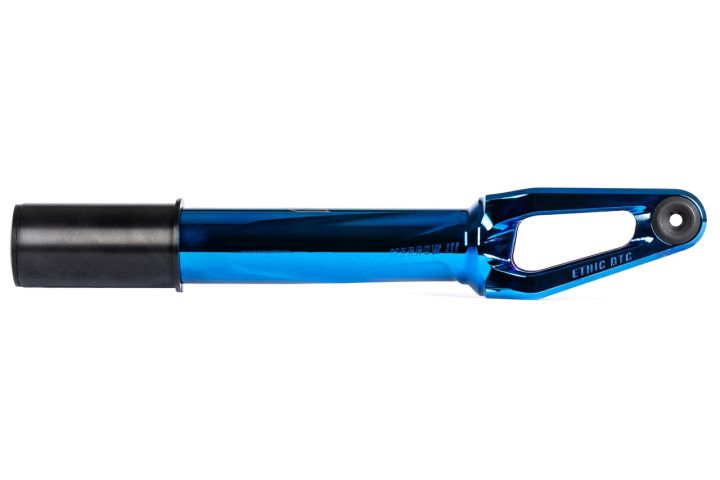

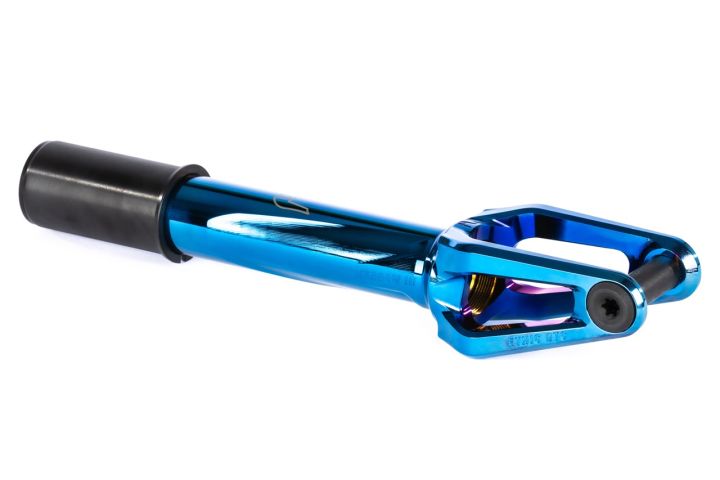

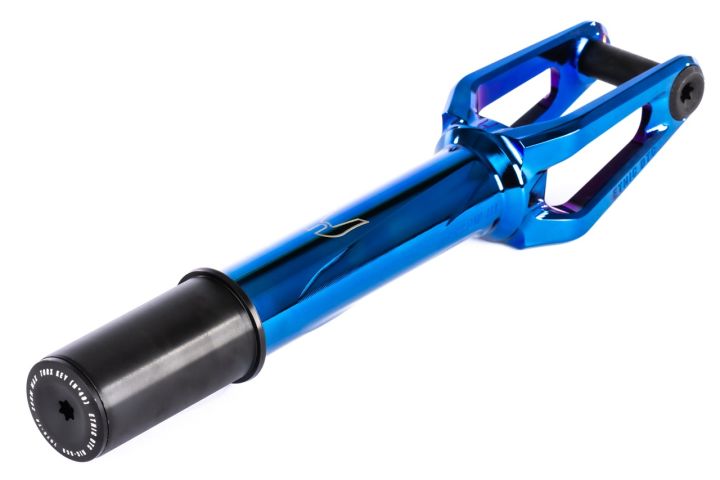

Ethic Merrow V3 8/12 STD HIC Fork Chrome Blue

Brand

Ethic
€97.96
Availability: In stock
SKU
16325
Manufacturer
Ethic
More Information
Weight 227
Tube length 160
Fork design Monoblock
Fork Offset Offset
Compression bolt Yes
Primary Compression System HIC
Wheel Hub Width Compatibility 24 mm, 30 mm
Fork | Wheel Diameter Compatibility 100, 110, 115, 120, 125
Fork | Wheel PU Width Compatibility 24 mm, 26 mm, 28 mm, 30 mm
Axle length 35
Thread Threadless
Compression system N/A
Crown race-fork Integrated
Frame spacers Built-in
Compression top cap SCS/HIC cap
Compression thread No
Material Aluminium

The Merrow V3 fork is back, this time in its 12 STD version, and now also natively compatible with 8 STD in a new improved way.


Just like its big sister dedicated solely to 8 STD, it has a single goal: to be the most optimized and lightest fork possible. (lightest 12 STD fork in the world)

Entirely machined from the strongest aluminum (7075), its curves and shapes are dictated by constraints, to be ultra-lightweight while remaining very strong. The force calculations have been carefully thought out to withstand the higher stresses of 30 mm wide wheels.

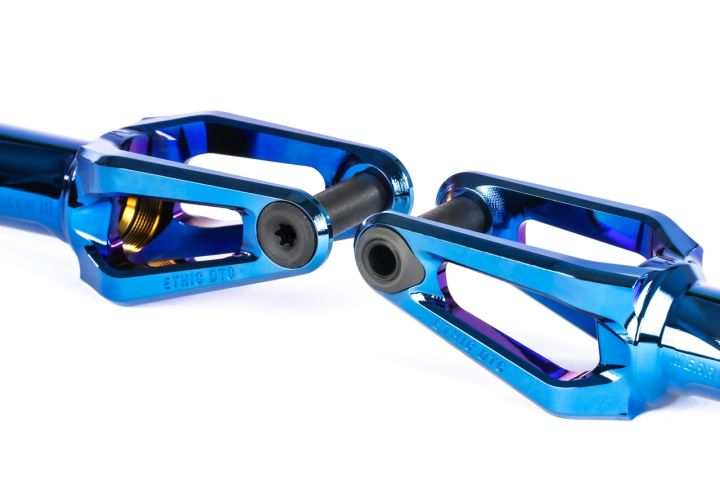

It is now 12 STD compatible with the new V3 axles, which are lighter, stronger, more attractive, now in Torx 40, and more practical: a single wrench is all you need to tighten the fork (Torx 40 wrench included in the box).

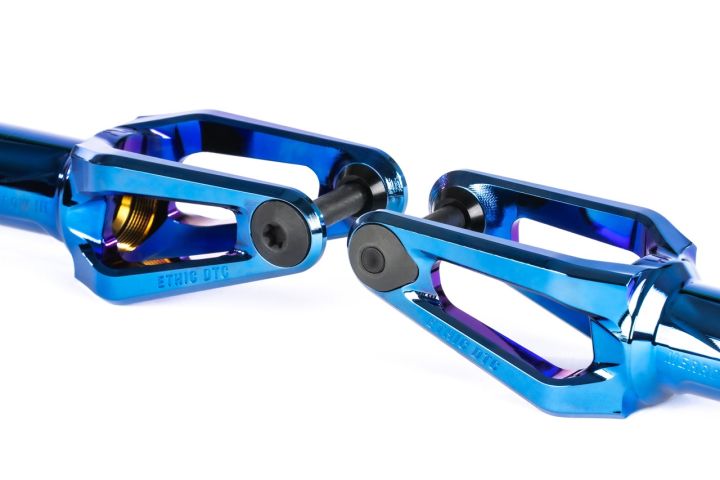

It also features new 8 STD conversion axles, allowing you to ride this fork with 24 mm wheels in a completely native way. Much more aesthetics than the standard axles used previously, they allow you to ride the fork in 8 STD without any increase in weight or loss of strength, are easy to install, and make no compromises in terms of aesthetics.

Thanks to the arrival of this new screw format, the Merrow v3 can now accommodate a 7075 compression screw, which contributes to the lightness of the whole unit.


This fork is available in 3 versions: SCS / HIC / IHC. It is now possible to ride a 12 STD setup with an aluminum handlebar.


Available in 3 colors: Black / Raw / Chrome Blue




Evolutions (compare to Legion 12 STD V2) :


22% Lighter : -71g (world lightest 12STD Fork)
Stronger tube
IHC compression available
New 12 STD V3 Torx axle
New 8 STD Torx conversion kit
Only one wrench needed
Torx 40 wrench included
